AUTOMOTIVE PROBES


AUTOMOTIVE PROBES

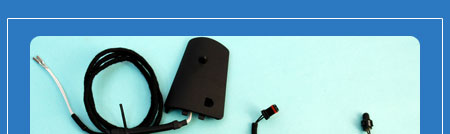

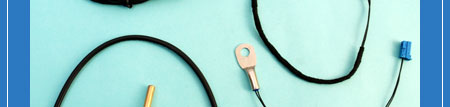

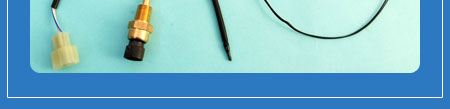

A range of NTC Thermistors dip coated or encapsulated in a plastic/metal casing

Applications :
Battery temperature measurements
Coolant temperature measurements
Air temperature measurements
Automotive Air conditioners


Product Features:
Precision temperature measurements
High Reliability and Stability
Moisture proof versions
Suitable to be used in acidic environments
Precision fitment

Option :
Other Resistance Value and Resistance    Temperature Characteristics
Custom design


Res.@ 25°C 2.0 Ohms, 50 Ohms
Res Tolerances ±1%, ±2%,±5%
B- Value (25/85°C)C 3435K to 4252K
Insulation Resistance >100 M ohms @ Vdc 500
Operating Temperature -40°C to 150°C
Probe Body Epoxy / SS/
Lead Wire 30/26/22/20 AWG Coaxial/Twin PVC / PTFE/Silicone insulation
