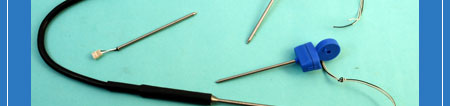

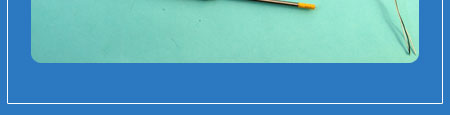

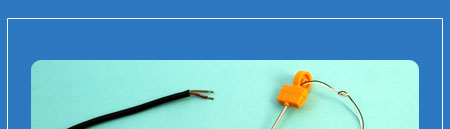

FOOD PROBES


FOOD PROBES

A range of epoxy coated NTC chip thermistors /RTD elements encapsulated in a stainless steel housing with epoxy resin.

Applications :
Suitable to measure the temperature of food    items to know the temperature attained during    cooking
Temperature measurement and monitoring during    food transportations

Product Features :
Fast response time.
Sensor available with RTD / Thermistor elements.
Sharp edge in the probe body to ease piercing.

Option :
Other Resistance values and Register Temperature    Characteristics
Custom design


Technical Data
Insulation Resistance >100 M ohms @ Vdc 500
Operating Temperature -40 °C to 250 °C
Probe Body SS
Lead wire Teflon insulated
NTC Thermistor
Resistance @ 25°C 2.0 K ohms, 50 K ohms
Resistance tolerance ±5%, ±1%
B- Value (25/85°C) 3435K to 3977K
RTD Element
Resistance @
0 °C
100 K ohms , 1000 K ohms
Resistance tolerance DIN Class A & Class B
Temperature Co-efficiency 0.0385 K ohm/ Ohms/ °C
