Medical temperature sensors


MEDICAL TEMPERATURE SENSOR

A range of epoxy coated NTC chip thermistors with enamal coated lead wires

Application:

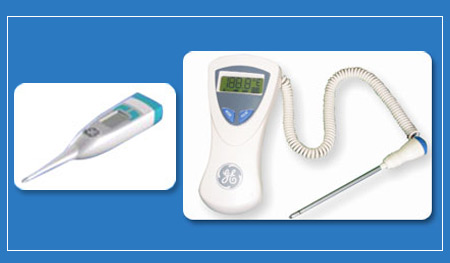

Digital Thermometer

Product Features:
Fast response time
Precision solid state temperature
Interchangeable down up to ±0.1°C
High reliability and stability over interchangeable    range

Option:
Other Resistance Value and Resistance    Temperature Characteristics
Custom design


Res.@ 25°C 2.0K ohms, 100K ohms
Res Tolerances ±0.4%, 0.8%, ±1%
B- Value (25/85°C)C 3435K to 4252K
Response time <25.0 Seconds
Insulation Resistance >100M ohms @Vdc 500
Lead wire 30AWG Bifilar
Operating Temperature 0°C to 100°C
Probe Body SS
