WASHING MACHINE PROBES


WASHING MACHINE PROBES

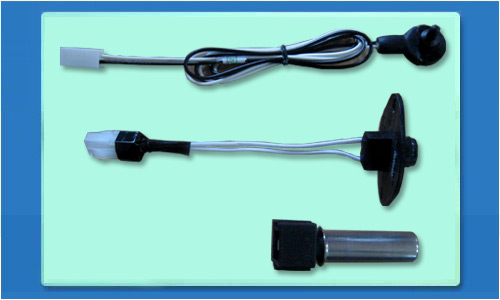

Glass encapsulated NTC thermistors with the attached lead wires are overmouled in plastic material

Application:
Inlet water temperature measurement
   in washing machines
Water temperature monitoring in the washing    tub

Product Features:
Designed for accurate temperature
   measurements and monitoring.
Range of wire lengths
Moisture proof
Precision fitment

Option:
Other Resistance Values and Resistance    Temperature Characteristics
Custom design


Res.@ 25°C 10 K ohms, 50 K ohms
Res Tolerances ±2%,±5%
B(25/85)°C 3977K
Response time <25.0 Seconds
Insulation Resistance >100 M ohms @ Vdc 500
Break down strength 1500 Vac
Lead wire
/22/24/AWG Coaxial
Operating Temperature -40°C to 105°C
Probe Body Brass / Copper / Nickel Plated Brass
